power simultaneously)
* Fixed high/low pressure/temperature warnings
* Instant audio alarm of abnormal pressure or temperature
* Build-in high capacity rechargeable battery
* Intuitive and clear interface to display the parameters of the 4 tire in turn
* Sleeping mode available, super easy to install
* Improve fuel efficiency, extended tire life and avoid abnormal wear of car parts
* Two pressure unit(psi/bar) supply for user to select
* Inter valve sensors, adjustable sensor mounting angle, water resistant
* Sensors batteries will last up to five years(you can replace the battery Autonomously,
do not need to return to manufacturers)
* Sensors transmit pressure and temperature data every 3 seconds
* Sensors can detect 0-8BAR tire pressure

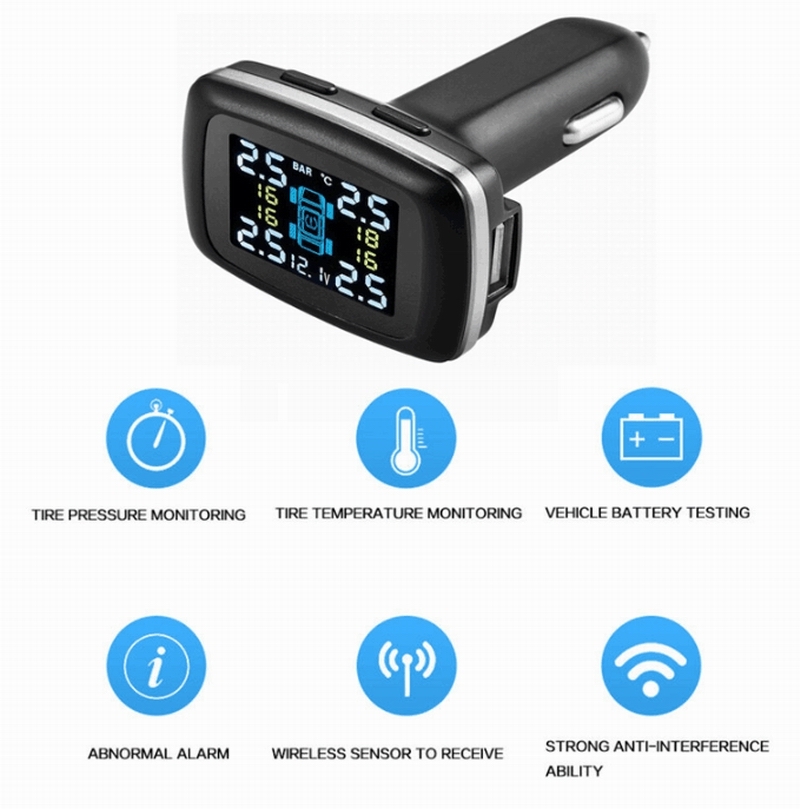

Main Features
1..Built-in water-resistant sensors, recognise each other
2.4 external or internal sensors, each of them has an independent ID code

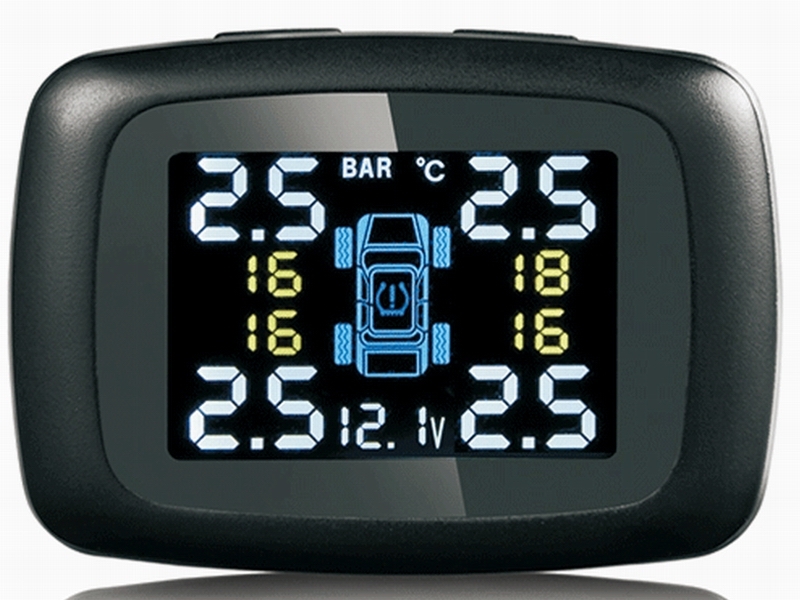

3.LCD display screen, can simultaneously show four tire pressure and temperature

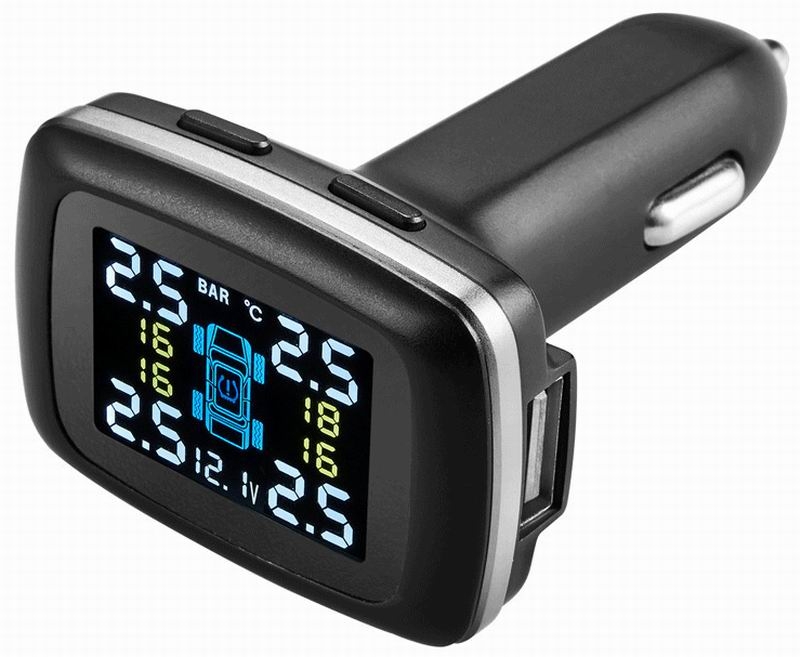

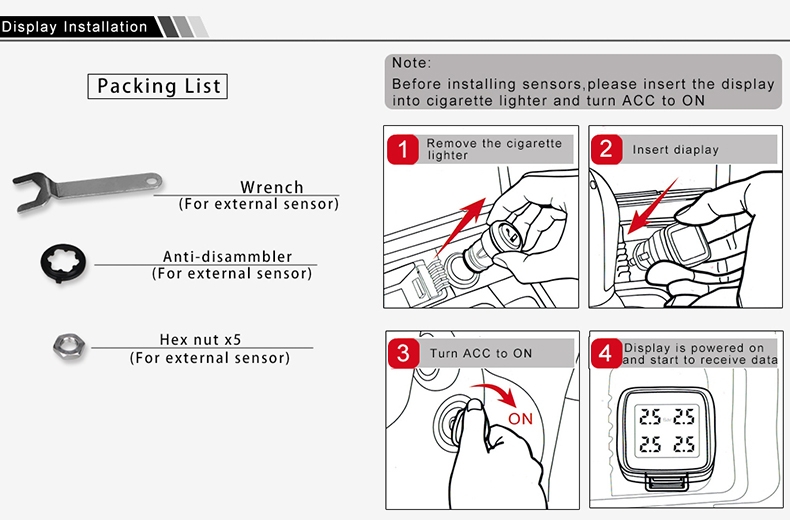

4.The monitor can be directly plugged into cigarette lighter, easy to use
5.Temperature, excessive pressure alarm, emergency leak alarm

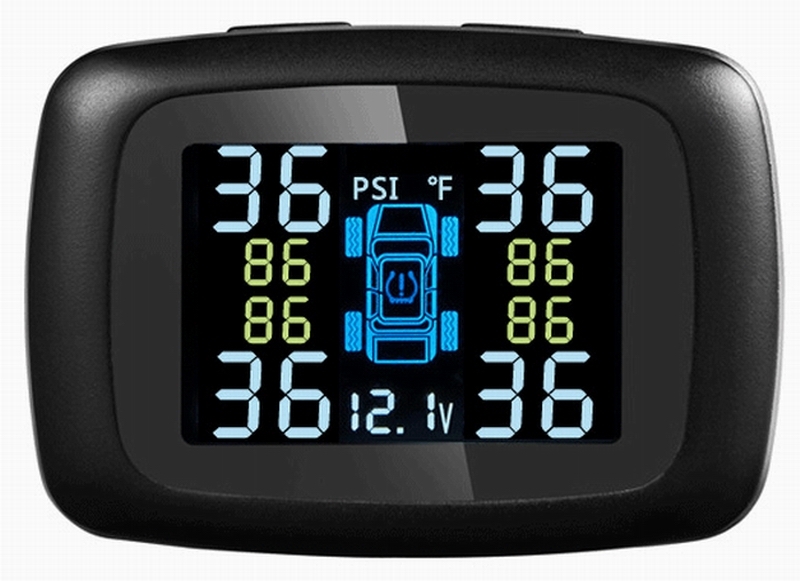

6.PSI / BAR two pressure unit, Deg.C and Deg.F two temperature unit
Specifications for sensor
1.Working Temp.: -20 - 80 Deg.C
2. Storage Temp.: -30 - 85 Deg.C
3.PressureRange: 0 - 87 PSI / 0 - 6 Bar
4.Pressure Accuracy: + / - 1.5 PSI ( + / - 0.1 Bar )
5.Transmission Power: Less than 10dBm
6.Transmission: 433.92MHz
Display
1.Operating Frequency: 433.92MHz
2. Operating Temp.: -20 - 70 Deg.C
- Storage Temp.: -30 - 85 Deg.C
- Storage Temp.: -35 - 85 Deg.C
- Output Voltage: DC 12 - 24V
To secure you a driving experience and extend the service life of the tire
Research shows that 30% car accident is caused by tire failure, 50% tire life time reduction
is caused by under-inflation or over-inflation even
most of them looks like the tire are properly inflated.
Thus, you are in need of a TPMS (Tire Pressure Monitoring System) to help you monitoring the tire of your vehicle and warn you about the abnormal
tire temperature and pressure——only to increase driving safety and reduce car accident.
